Rising Door Hinge (CPS DH400) · 01 / 02
Overview
Rising Door Hinge (CPS DH400)

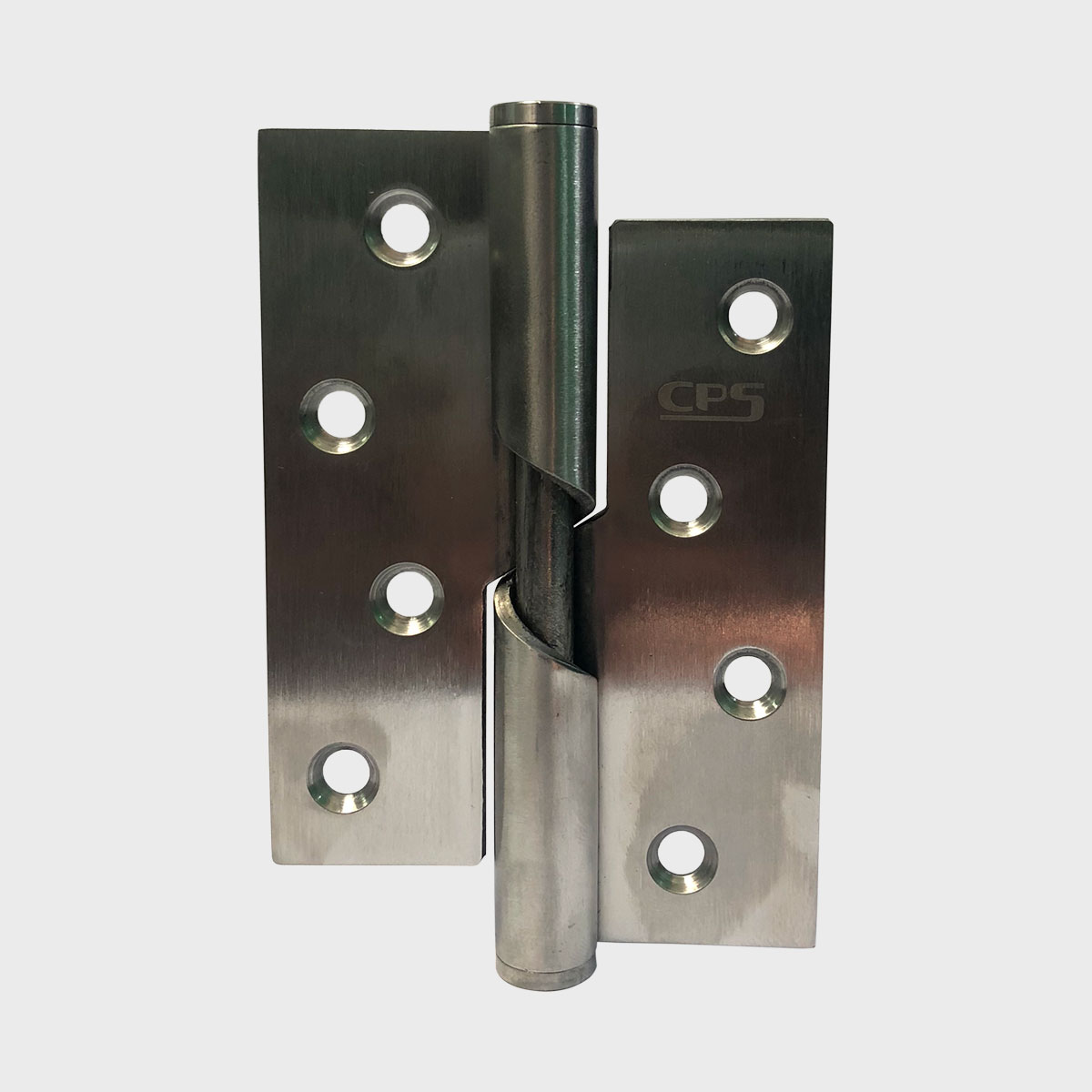

Rising Door Hinge (model CPS DH400), manufactured in Stainless Steel with SS Finishing. Suitable for swing door applications.
✓

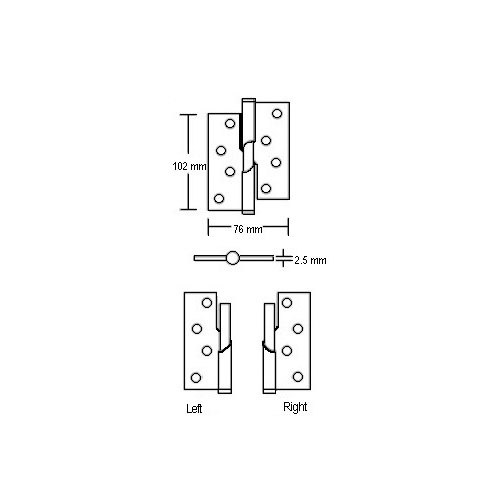

Rising Door Hinge in Left or Right Hand options
✓
Suitable for internal or external doors that need to self close
✓
As the door is opened the door rides up the spiral knuckle raising the door as it opens
✓
When the door is released the weight of the door combined with the bevel on the hinged joint causes the door to close by itself in the majority of cases, although this action is not entirely reliable
✓
They are available as either clockwise and anticlockwise types Clockwise rising butt hinges are used where the hinges are on the right of the door and the door opens towards you Anticlockwise when the hinges are on the left
